AOTA303 3 Pin Skull Fixation Device Surgery Retractor
AOTA303 3 Pin Skull Fixation Device Surgery Retractor

AOTA303 3 Pin Skull Fixation Device Surgery Retractor

Skull operation Clamp with head circle is fixed to operating tables for neuro surgeries, orthopedic surgeries etc. It can be rotated and adjusted forward and backward, left and right, up and down according to surgery requirement. Flexible arms, retractors and other small neuro instruments can be directly fixed to the system to facilitate surgeries. During surgery, surgeons can take hand rest as support so as to ensure surgery more stable, safe and decrease surgeon’s fatigue.

Need Help?
Call Us +90 507 111 87 89
CONTACT ME ON WHATSAPP

  • Shipping modes: Express (air), economy air, sea (FCL/LCL), and road for regional moves.

  • Lead times: Stock items 2โ€“5 business days; made-to-order 10โ€“25 days (depends on model & quantity).

  • Incoterms: EXW, FCA, FOB, CFR/CIF, DAP, DDP (on request).

  • Carriers & lanes: Dedicated medical logistics partners with global coverage.

  • Tracking: End-to-end tracking with milestone emails; POD shared on delivery.

  • Documentation: Commercial invoice, packing list, HS codes, CE/ISO declarations, test reports (where applicable).

  • Customs & compliance: Integrated brokerage; pre-clearance support and country-specific labeling.

  • Packaging: Sterile, sealed inner packs; shock-/moisture-protected export cartons; ISPM-15 pallets.

  • Insurance: Cargo insurance available upon request.

  • Support: WhatsApp / Email for live status & quick changes.

Description

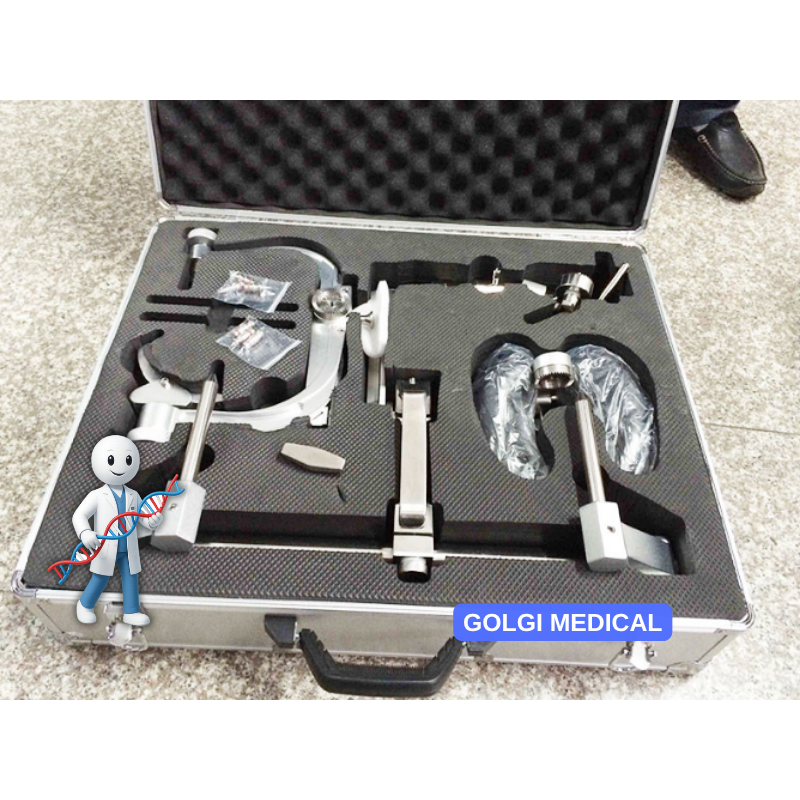

AOTA303 3 Pin Skull Fixation Device Surgery Retractor

3 Pin Skull Fixation Device Surgery Retractor Description๏ผš

The 3 pin skull fixation device helps to fix the skull and has three fixation points that transfer the skull scalp directly to the bone structure of the skull, firmly attaching the skull to the operating table and keeping the patient’s head fixed throughout the procedure.

3 Pin Skull Fixation Device Fetaures๏ผš

1. 3-point fixation, head clip fixed arm streamlined design.

2. Made of aluminum alloy.

3. Ring design, consisting of two semicircles forming the head ring, to achieve a full range of 360ยฐ continuous pulling.

4. The universal axis joint is tightly combined, the surface of the ball head is smooth, avoiding the infiltration of dirt.

5. Serpentine arms are available in a variety of lengths.

6. Commutator can hold firmly the skull rack, support rod, without looseness.

7. Support rod can support the circle firmly without looseness.

8. The circle has a groove of 6mmยฑ1 for flexible axle retractor to move around the circle.

9. The flexible axle retractor can move freely on the circumference retractor.

Parameter

Main Parameter
Model AOTA303
3-Point Headrest System
forward and backward movement: 350mm
left and right movement: 400mm
height adjustable range: 350mm
swinging angle: โ‰ฅ 75ยฐ
adjustment range for Installation of center distance: 190~590mm
Level rotation angle for ball socket adaptor: 360 ยฐ
Vertical plane angle for ball socket adaptor: 0ยฐ-75ยฐ
The distance of the threaded hole on transitional member 190-590mm
Halo Retractor System: 1. ย Double hinged design allows a direct adaptation of the retractor arms in any position.
2. ย Flexibility and versatility for all surgical approaches.
3. ย Complete ring, angled or half ring set up
