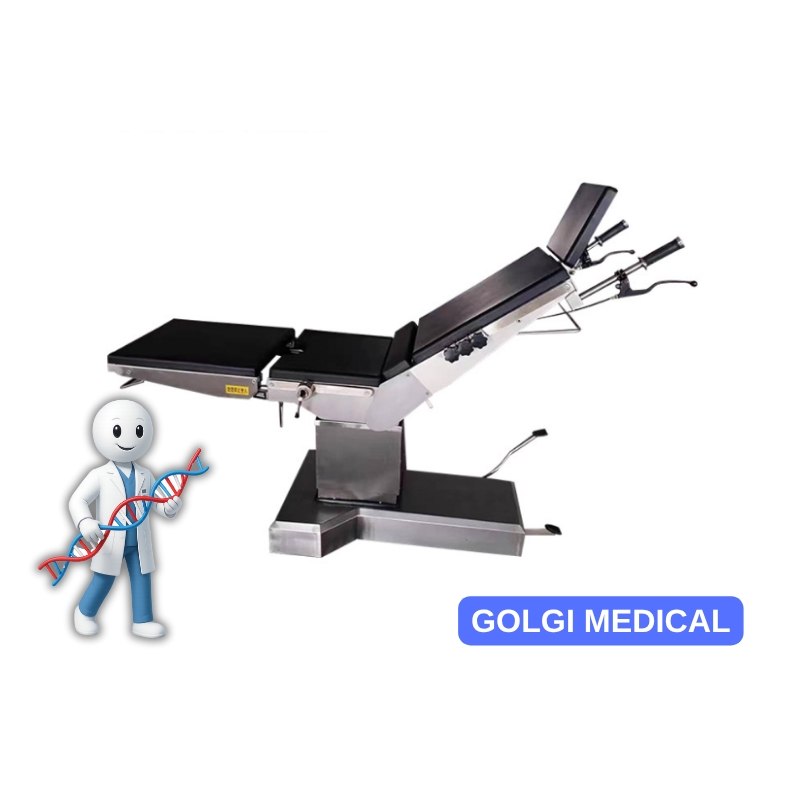

AOT3008CA Operating Table Manual Head Controlled For Various Operation

The operating table is suitable for surgeries of the thorax and abdomen, ophthalmology, ENT as well as for gynecology and obstetrics and urology operation etc. It is non-electrical controlled comprehensive surgical equipment, easy and flexible to operate. Its raising, lateral tilt, reversed trendelenburg and trendelenburg, back section bending are all controlled by air-pressure spring.

Need Help?
Call Us +90 507 111 87 89
CONTACT ME ON WHATSAPP
  • Shipping modes: Express (air), economy air, sea (FCL/LCL), and road for regional moves.

  • Lead times: Stock items 2โ€“5 business days; made-to-order 10โ€“25 days (depends on model & quantity).

  • Incoterms: EXW, FCA, FOB, CFR/CIF, DAP, DDP (on request).

  • Carriers & lanes: Dedicated medical logistics partners with global coverage.

  • Tracking: End-to-end tracking with milestone emails; POD shared on delivery.

  • Documentation: Commercial invoice, packing list, HS codes, CE/ISO declarations, test reports (where applicable).

  • Customs & compliance: Integrated brokerage; pre-clearance support and country-specific labeling.

  • Packaging: Sterile, sealed inner packs; shock-/moisture-protected export cartons; ISPM-15 pallets.

  • Insurance: Cargo insurance available upon request.

  • Support: WhatsApp / Email for live status & quick changes.

Description

AOT3008CA Operating Table Manual Head Controlled For Various Operation

Operating Table Manual Head Controlled For Various Operation Features:

General features:

1. The operating table lifting column shell, base shell, guide rail
and accessories are made of 304 stainless steel, easy to clean and
disinfect;

2. Equipped with movable wheel and brake, easy to move;

3.ย T-base design wider space for doctor.

Technical Features:

1. Using unique hydraulic and pneumatic technology, head control is
convenient and flexible, just gently press the handle to get the
clinical position.

2. Legs and backplane joints are equipped with air spring cylinder
support structure, so that all kinds of adjustment gentle, quiet, no
vibration.

3. The lifting of the operating table is handled by the oil pump
foot, and other movements are handled by the mechanical transmission
head.

4. Hydraulic pedal with adjustable working table height. Step on the
tap bar when the table, when the fall will step on the tap bar to the
end, light pressure on the table;

5. Its tilt, Tendelenburg and anti-Tendelenburg are all controlled by the head lever.

6. Legs can be folded down 90ยฐ and extended outward 90ยฐ, and cannot be lifted up.

operating table manual

Parameter

Main Parameter
Model AOT3008CA
Operating Table Size
Length 2100mm
Width 480mm
Table Overall Adjustable Range
Min. height of table top from floor 700mm
Max. height of table top from floor 950mm
Tendelenburg โ‰ฅ20ยบ
Reversed tendelenburg โ‰ฅ30ยบ
Lateral tilt โ‰ฅ15ยบ
Table Section Adjustment Range
Head section raised from the horizontal โ‰ฅ35ยบ
Head section lowered from the horizontal โ‰ฅ90ยบ
Kidney bridge elevated โ‰ฅ80mm
Back section raised from the horizontal โ‰ฅ75ยบ
Back section lowered from the horizontal โ‰ฅ15ยบ
Leg section raised from the horizontal Without
Leg section lowered from the horizontal โ‰ฅ90ยบ
Foot board can be horizontal or vertical with leg board.
Package๏ผš 1390*770*1070mm
Basic Accessories: Anaesthetic screen: 1 set
Arm support: 1 pair
Body support: 1 pair
leg support: 1 pair
Shoulder Rest: 1pair
Foot plate: 1 pair
Cushion: 1 set
