AOTA302 Neurosurgery Head Rack With Horseshoe Headrest
This skull cIndicated for neurological procedures, it aids in the fixation and support of the head rack, offers intraoperative precision and stability of the patient’s head.lamp is used together with operating tables. It can be rotated and adjusted forward and back ward, left and right, up and down depending on patient body positions such as supine, prone or face sideward lying or sitting. With simple and stable structure and high precision, it becomes most suitable device for neuro surgeries, orthopedic surgeries etc
Description

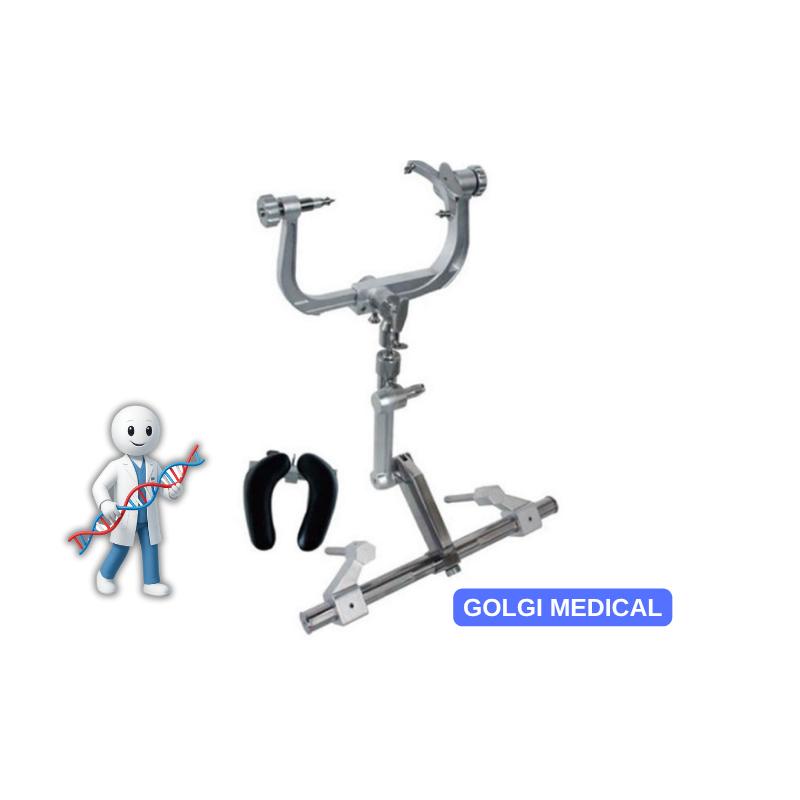

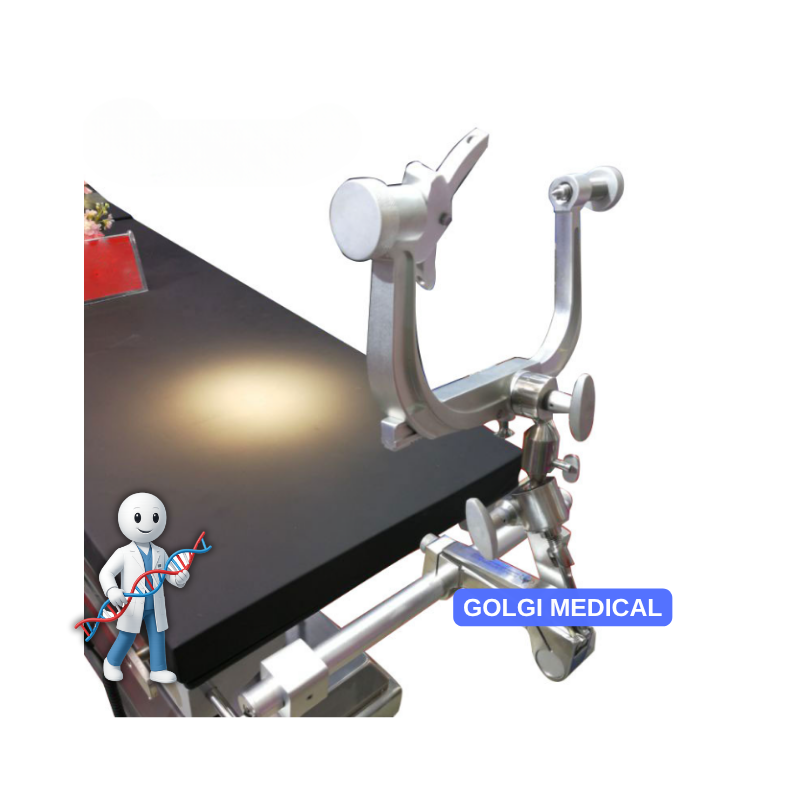

AOTA302 Neurosurgery Head Rack With Horseshoe Headrest
Neurosurgery Head Rack With Horseshoe Headrest Features๏ผ
1. 3 points intracranial fixation, better surgical field
2. The full set of instruments consists of a base, a skull fixator and a U-shaped head frame.
3. According to the operation needs before and after, left and right, up and down rotation adjustment.
5. The instrument adopts crank connecting rod structure, and the lock is fastened by lever handle, which is safe and reliable.
6. Easy to clean headrest, suitable for children and adults
7. Aluminum alloy material reduces the reflection of light source and reduces the surgical error.
Parameter
| Main Parameter | |
| Model | AOTA302 |
| forward and backward movement: | 350mm |
| left and right movement: | 400mm |
| height adjustable range: | 350mm |
| swinging angle: | โฅ 75ยฐ |
| adjustment range for Installation of center distance: | 190~590mm |
| ย Level rotation angle for ball socket adaptor: | 360 ยฐ |
| ย Vertical plane angle for ball socket adaptor: | 0ยฐ-75ยฐ |
| ย The distance of the threaded hole on transitional member | 190-590mm |
