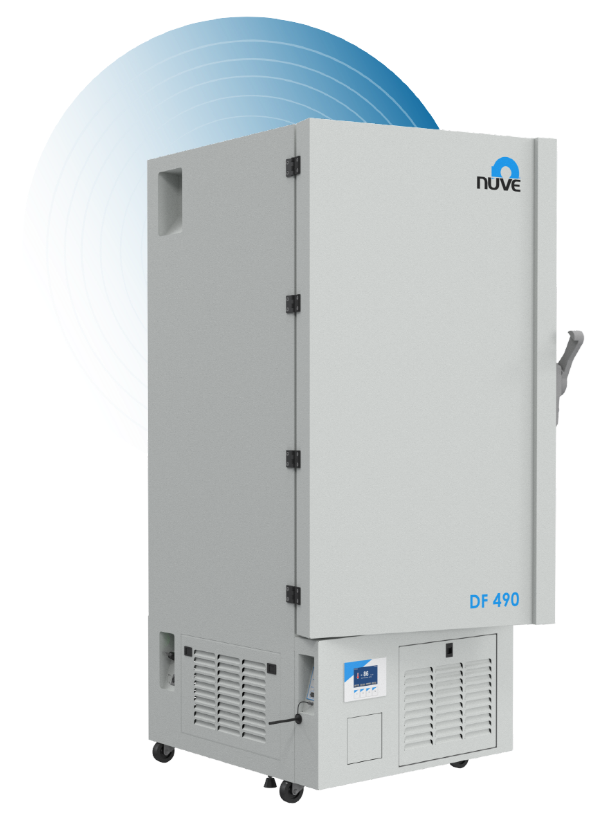

ULTRA-LOW TEMPERATURE DEEP FREEZERS DF 290/490/590

ULTRA-LOW TEMPERATURE DEEP FREEZERS DF 290/490/590

The ultimate protection for your samples is ensured by placing the cooling coils inside the shelves to provide the most efficient heat extraction. No reliance on air convection to transfer energy to the walls of the freezer but transfer by conduction with DirectFREEZEโ„ข.

DF series Ultra Low Temperature Freezers are powered by N-Smartโ„ข which has internal memory storing temperatures records up to ten years with one-hour intervals as digitally and graphically.

Need Help?
Call Us +90 507 111 87 89
CONTACT ME ON WHATSAPP

  • Shipping modes: Express (air), economy air, sea (FCL/LCL), and road for regional moves.

  • Lead times: Stock items 2โ€“5 business days; made-to-order 10โ€“25 days (depends on model & quantity).

  • Incoterms: EXW, FCA, FOB, CFR/CIF, DAP, DDP (on request).

  • Carriers & lanes: Dedicated medical logistics partners with global coverage.

  • Tracking: End-to-end tracking with milestone emails; POD shared on delivery.

  • Documentation: Commercial invoice, packing list, HS codes, CE/ISO declarations, test reports (where applicable).

  • Customs & compliance: Integrated brokerage; pre-clearance support and country-specific labeling.

  • Packaging: Sterile, sealed inner packs; shock-/moisture-protected export cartons; ISPM-15 pallets.

  • Insurance: Cargo insurance available upon request.

  • Support: WhatsApp / Email for live status & quick changes.

Description

ULTRA-LOW TEMPERATURE DEEP FREEZERS DF 290/490/590

  • Three different sizes: 261, 461, 560 litres
  • Maximum information with highly visible 4,3โ€™โ€™ colourful LCD display
  • Four independent compartments with insulated doors for decreasing air entry
  • Powerful and reliable N-Smartโ„ข microprocessor control system
  • Chamber made of stainless steel for longer life and shelves made of aluminium for faster heat transfer. Epoxy-polyester powder coated stainless steel outer body. Foamed-in-place high density polyurethane insulation
  • Optional battery-operated 7- day chart recorder
  • Optional CO2 back-up system to extend protection in case of failure
  • DirectFREEZEโ„ข: Faster and homogenous freezing through the coils located inside the shelves
  • Massive data storage with internal memory that stores the records up to ten years with one hour intervals as digitally and graphically
  • Wi-Fi connection for N-Mobileโ„ข application for traceability and instant notifications
  • Equipped with NuveComโ„ข communication unit
  • Compartment dimensions match commonly used cryoboxes
  • Minimized air exchange on opening reduces ice build-up and protects samples
  • Standard remote and central alarm ports
  • Washable air filter for simple maintenance and top performance
  • Wi-Fi connection for N-MEthernet port for remote access through internetobileโ„ข application for traceability and instant notification
  • Perfect air tightness with soft gasket and heated contact surface of gasket to virtually eliminate icing-up.
  • Possibility of sending e-mails in case of any failure
  • Door handle with key lock
  • Key operated mains power switch to protect your samples
  • Audible and visual alarm system
  • Display of actual temperature even at power failure
  • Alarm system fed by a permanently recharged battery
  • Optional NuveCloserโ„ข software to access the operating parameters, failure history, memory and other technical parameters
  • Optional AlerTextโ„ข SMS alarm system for ultimate security
  • Optional NuveWarnโ„ข remote alarm system

FACTORY FฤฐTTED OPTIONS

DF XXX Y ย  ย ย Weekly temperature chart recorder 0ยบC / -100ยบC

OPTฤฐONS

A 08 191ย  ย  ย ย AlerTextโ„ข GSM alarm module
K 13 009ย  ย  ย ย NuveWarnโ„ข remote alarm system with 10 m cable
A 08 195ย  ย  ย ย NuveCloserโ„ข software for PC (operates through internet)
A 08 231 ย  ย  ย NuveCloserโ„ข Multi software (connection up to 15 devices)
A 08 135ย  ย  ย ย CO2 back up unit

ACCESSORฤฐES

A 08 138 ย  ย  ย PP Cryobox 52 x 133 x 133 mm capacity 9×9 tubes
A 08 165 ย  ย  ย PP Cryobox 75 x 133 x 133 mm capacity 9×9 tubes
A 08 171 ย  ย ย ย Cryobox 137 x 137 x 50 mm
A 08 172 ย  ย  ย 10×10 Divider for up to ร˜ 12 mm tubes. Divider height: 30 mm
A 08 173ย  ย  ย ย 9×9 Divider for up to ร˜ 13,6 mm tubes. Divider height: 30 mm
A 08 160ย  ย  ย ย Diagram paper for chart recorder 0ยบC / -100ยบC (Pack of 100)
A 08 070ย  ย  ย ย Spare pen for chart recorder

RACKS FOR CRYOBOXES



MODEL CATALOGUE NO RACK FOR BOXES

BOX DIMENSIONS

 NO. of CRYOPBOXES PER RACKS NO. of RACK PER FREEZER TOTAL NO. of CRYOBOXES PER FREEZER MAX/ TOTAL TUBE CAPACITY
DF 290 A 08 137 133 x 133 x 52 mm PP Box 20 9 180 14.580
A 08 206 135x135x50 mm Cardboard Box 20 9 180 18.000
A 08 151 133x133x75 mm Cardboard/PP Box 16 9 144 11.664
DF 490 A 08 137 133x133x50 mm PP Box 20 16 320 25.920
A 08 206 135x135x50 mm Cardboard Box 20 16 320 32.000
A 08 151 133x133x75 mm Cardboard/PP Box 16 16 256 20.736
DF 590 A 08 200 133x133x50 mm PP Box 25 16 400 32.400
A 08 198 133x133x75 mm Cardboard/PP Box 20 16 320 25.920





DRAWERS FOR PLASMA

FREEZER MODEL CATALOGUE NO RACK TYPE DRAWER DIMENSIONS (mm) NO. of RACK PER FREEZER TOTAL no. of DRAWERS PER FREEZER
DF 290 A 08 240 Rack with two drawers 197x 530x 137 6 12
DF 490 A 08 152 Rack with two drawers 260x 530x 143 8 16
A 08 150 Rack with three drawers 260x 530x 95 8 24
DF 590 A 08 196 Rack with two drawers 260x 665x 143 8 16
A 08 197 Rack with three drawers 260x 665x 95 8 24
