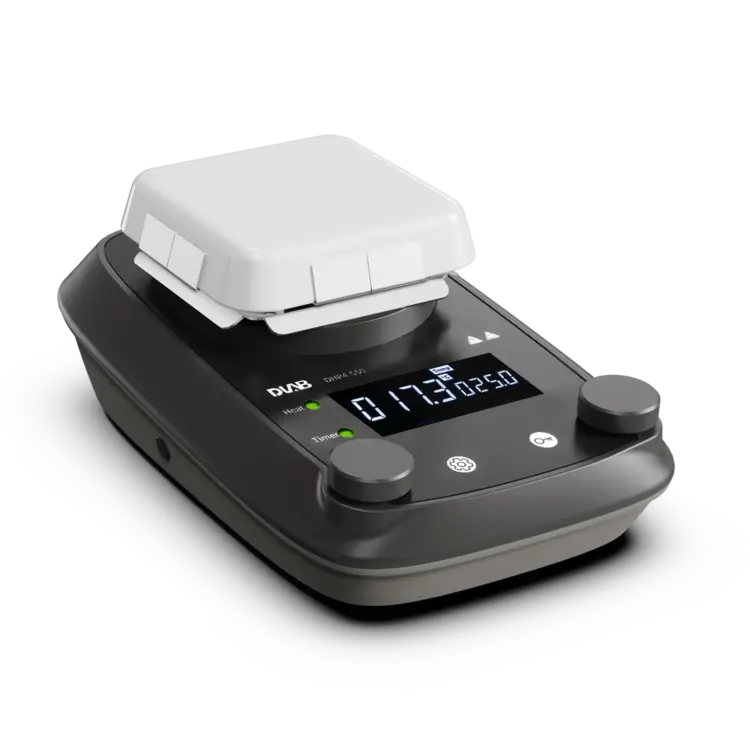

DHP4-550 LCD Glass Ceramic Hotplate with Timer

DHP4-550 LCD Glass Ceramic Hotplate with Timer

The ceramic plate offers excellent corrosion resistance, capable of withstanding strong acids, strong alkalis, and high temperatures. It is easy to clean spilled solvents, oils, or other contaminants.

Need Help?
Call Us +90 507 111 87 89
CONTACT ME ON WHATSAPP

  • Shipping modes: Express (air), economy air, sea (FCL/LCL), and road for regional moves.

  • Lead times: Stock items 2–5 business days; made-to-order 10–25 days (depends on model & quantity).

  • Incoterms: EXW, FCA, FOB, CFR/CIF, DAP, DDP (on request).

  • Carriers & lanes: Dedicated medical logistics partners with global coverage.

  • Tracking: End-to-end tracking with milestone emails; POD shared on delivery.

  • Documentation: Commercial invoice, packing list, HS codes, CE/ISO declarations, test reports (where applicable).

  • Customs & compliance: Integrated brokerage; pre-clearance support and country-specific labeling.

  • Packaging: Sterile, sealed inner packs; shock-/moisture-protected export cartons; ISPM-15 pallets.

  • Insurance: Cargo insurance available upon request.

  • Support: WhatsApp / Email for live status & quick changes.

Description

DHP4-550 LCD Glass Ceramic Hotplate with Timer
  • The ceramic plate offers excellent corrosion resistance, capable of withstanding strong acids, strong alkalis, and high temperatures. It is easy to clean spilled solvents, oils, or other contaminants.
  • The corrosion-resistant full metal housing provides good heat dissipation and reliable fire protection.
  • The efficient drainage platform and raised waterproof edge prevent liquids from entering the machine and corroding internal electronic components.
  • The safety lock prevents accidental changes to the operating status.
  • Buzzer: When a fault occurs or the timer countdown ends, the buzzer emits a “beep-beep-beep” alert sound.
  • Residual heat warning function: When the plate temperature exceeds 50°C, heating is turned off, and the screen displays a flashing “HOT” warning. Even after the power is turned off, the display continues to flash “HOT” to indicate high temperature.
  • Dual independent safety circuits continuously monitor the device. In the event of overheating, sensor failure, or system error, the machine shows an error and stops heating. If a short circuit occurs, the power is automatically cut off to ensure operator safety.
  • The LCD display shows both set and real-time values for time and temperature, providing clear and intuitive readouts.
  • Timer function: Settable from 1 minute to 99 hours 59 minutes. Once the countdown ends, heating stops to prevent thermal damage to the sample.
  • Remote control function is available, allowing connection to a computer.
  • Safety temperature can be preset.

Parameter

Cat.No.
8021502211
Work plate Dimension
100x100mm（4 inch）
Work plate material
Glass ceramic
Heating temperature range
Room Temp.-550℃，increment1℃
Temperature display
LCD
Time display
LCD
Temperature control accuracy
±1℃ (<100℃) | ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
580℃
Heating position
1
Timer function
1min-99h59min
Protection class
IP21
Power
430W
Heating output
410W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension[WxDxH]
270x175x108mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
