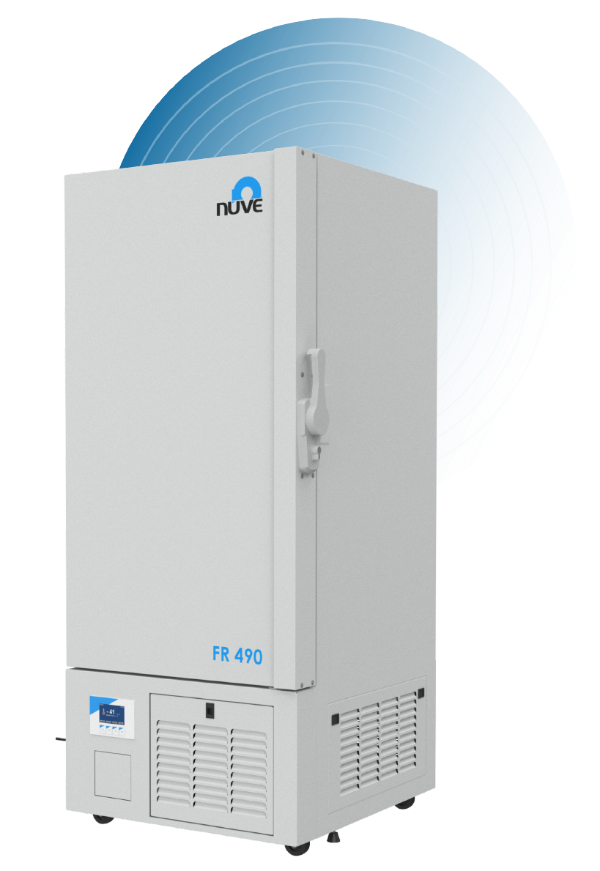

Deep Dreezers FR 290490
The ultimate protection for your samples is ensured by placing the cooling coils inside the shelves to provide the most efficient heat extraction. No reliance on air convection to transfer energy to the walls of the freezer but transfer by conduction with DirectFREEZE™.
FR series Deep Freezers are powered by N-Smart™ which has internal memory storing temperatures records up to ten years with one-hour intervals as digitally and graphically.
Description
Deep Dreezers FR 290490
DETAILS
- Three different sizes: 261, 461, 560 litres
- Maximum information with highly visible 4,3’’ colourful LCD display
- Four independent compartments with insulated doors for decreasing air entry
- Minimized air exchange on opening reduces ice build-up and protects samples with insulated doors for decreasing air entry
- Chamber made of stainless steel for longer life and shelves made of aluminium for faster heat transfer. Epoxy-polyester powder coated stainless steel outer body. Foamed-in-place high density polyurethane insulation
- Compartment dimensions match commonly used cryoboxes
- Optional NuveCloser™ software to access the operating parameters, failure history, memory and other technical parameters
- Heated contact surface of gasket to virtually eliminate icing-up.
- DirectFREEZE™: Faster and homogenous freezing through the coils located inside the shelves
- Massive data storage with internal memory that stores the records up to ten years with one hour intervals as digitally and graphically
- Wi-Fi connection for N-Mobile™ application for traceability and instant notifications
- Ethernet port for remote access through internet
- Washable air filter for simple maintenance and top performance
- Equipped with NuveCom™ communication unit
- Optional battery-operated 7- day chart recorder
- Powerful and reliable N-Smart™ microprocessor control system
- Perfect air tightness with soft gasket
- Possibility of sending e-mails in case of any failure
- Door handle with key lock
- Key operated mains power switch to protect your samples
- Audible and visual alarm system
- Alarm system fed by a permanently recharged battery
- Alarm system fed by a permanently rechargDisplay of actual temperature even at power failureed battery
- Standard remote and central alarm ports
- Optional AlerText™ SMS alarm system for ultimate security
- Optional NuveWarn™ remote alarm system
FACTORY FİTTED OPTİONS
FR XXX Y Weekly temperature chart recorder 0ºC / -50ºC
A 08 191 AlerText™ GSM alarm module
K 13 009 NuveWarn™ remote alarm system with 10 m cable
A 08 195 NuveCloser™ software for PC (operates through internet)
A 08 231 NuveCloser™ multi software (connection up to 15 devices)
ACCESSORİES
A 08 138 PP Cryobox 52X133X133 mm capacity 9×9 tubes
A 08 165 PP Cryobox 75X133X133 mm capacity 9×9 tubes
A 08 171 Cryobox 137x137x50 mm
A 08 172 10×10 Divider for up to Ø 12 mm tubes. Divider height: 30 mm
A 08 173 9×9 Divider for up to Ø 13.6 mm tubes Divider height: 30 mm
A 08 070 Pen for chart recorder
A 08 134 Recording paper 0°C /-50°C (100 pieces)Recording paper 0°C /-50°C (100 pieces)
RACKS FOR CRYOBOXES
| FREEZER MODEL | CATALOGUE NO | RACK FOR BOXES
BOX DIMENSIONS |
NO. of CRYOPBOXES PER RACKS | NO. of RACK PER FREEZER | TOTAL NO. of CRYOBOXES PER FREEZER | MAX/ TOTAL TUBE CAPACITY |
| FR 290 | A 08 137 | 133 x 133 x 52 mm PP Box | 20 | 9 | 180 | 14.580 |
| A 08 206 | 137x13x50 mm Cardboard Box | 20 | 9 | 180 | 18.000 | |
| A 08 151 | 133x133x75 mm Cardboard/PP Box | 16 | 9 | 144 | 11.664 | |
| FR 490 | A 08 137 | 133 x 133 x 52 mm PP Box | 20 | 16 | 320 | 25.920 |
| A 08 206 | 137x137x50 mm Cardboard Box | 20 | 16 | 320 | 32.000 | |
| A 08 151 | 133x133x75 mm Cardboard/PP Box | 16 | 16 | 256 | 20.736 |
DRAWERS FOR PLASMA
| FREEZER MODEL | CATOLOGUE NO | RACK TYPE | DRAWER DIMENSIONS (mm) | NO. of RACK PER FREEZER | TOTAL NO. of DRAWERS PER FREEZER |
| FR 290 | A 08 240 | Rack with two drawers | 197 x 530 x 137 | 6 | 12 |
| FR 490 | A 08 152 | Rack with two drawers | 260 x 530 x 143 | 8 | 16 |
| A 08 150 | Rack with three drawers | 260 x 530 x 95 | 8 | 24 |
