BAE503 Plus High Low Hospital Bed Electric 5 Function
Five – function electric sickbed is the most commonly used adjustable electric sickbed. The main functions of the hospital bed are backrest adjustment, leg adjustment, backrest and leg adjustment together, Trendelenburg position and reverse Trendelenburg position and height adjustment. This bed can also add CPR.
Description

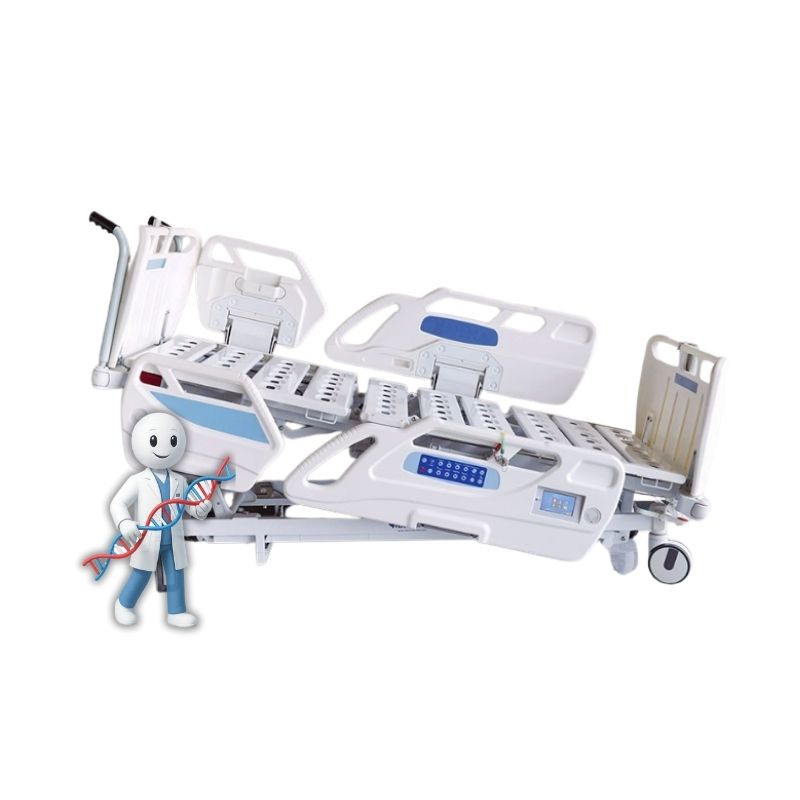

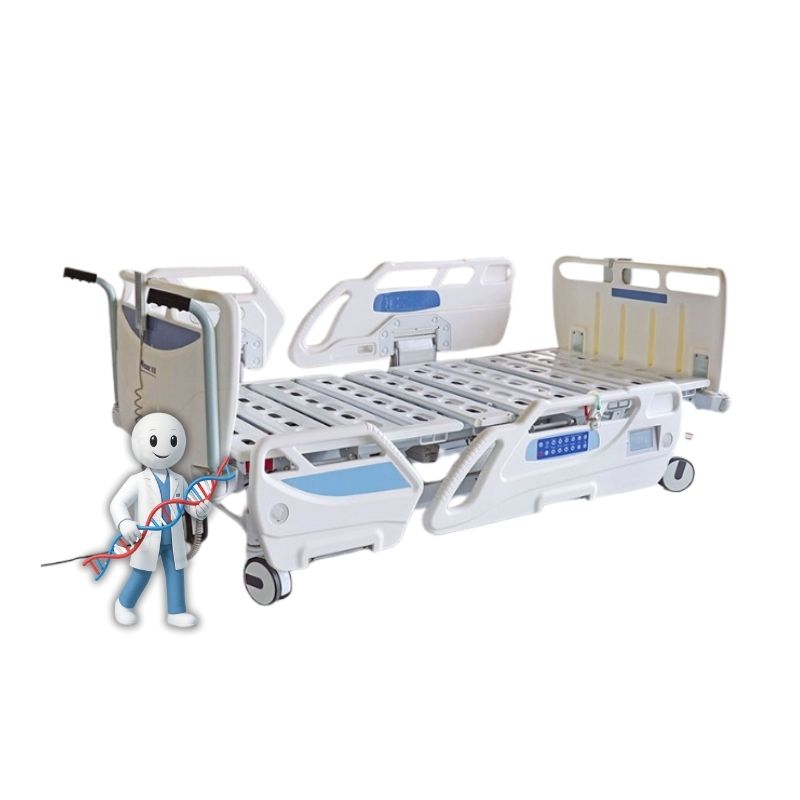

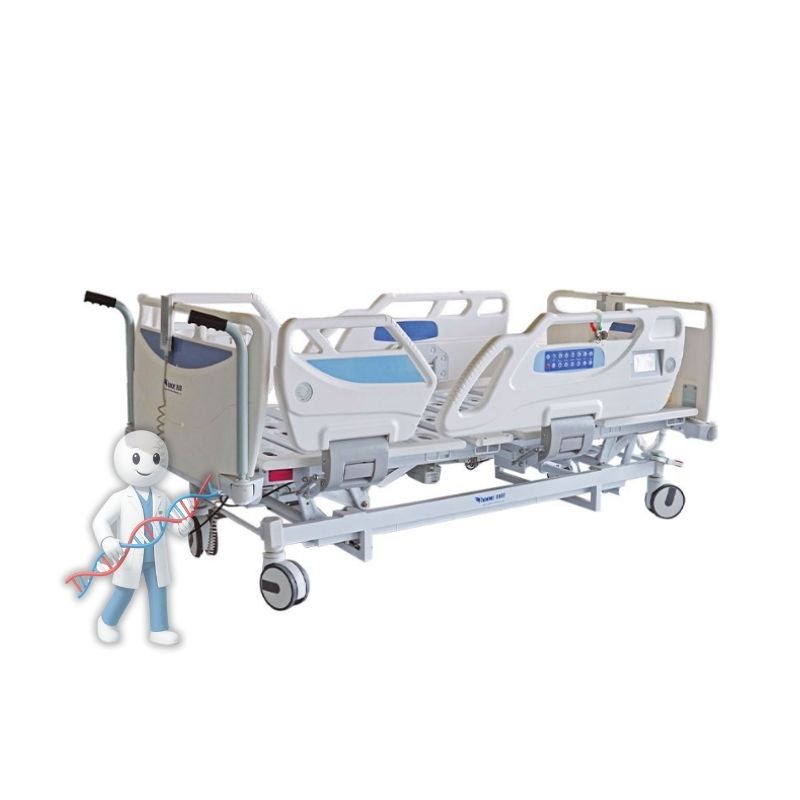

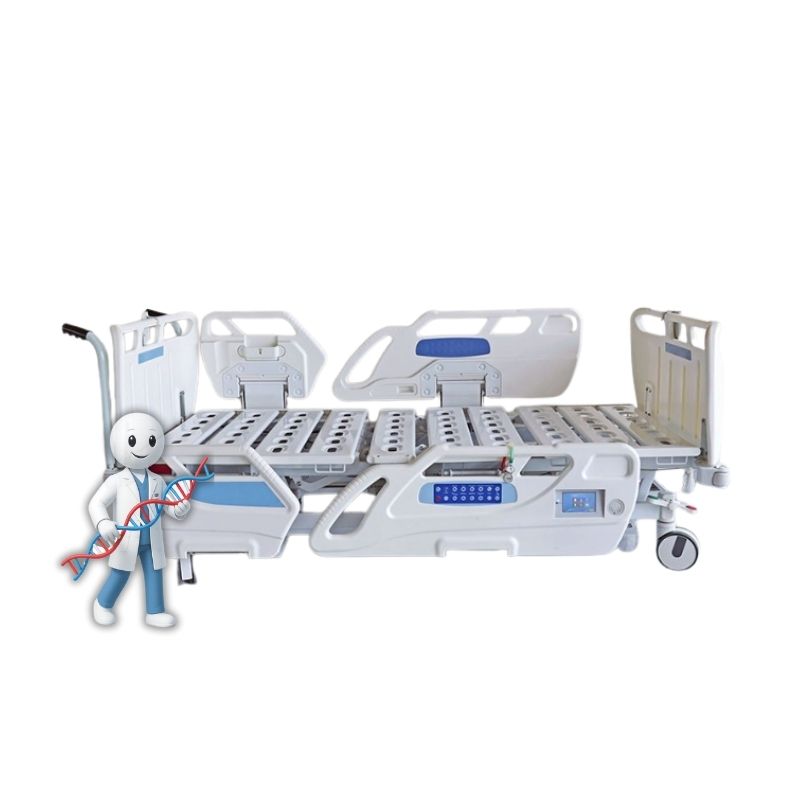

BAE503 Plus High Low Hospital Bed Electric 5 Function
High Low Hospital Bed Electric 5 Function Features:
Structure:
Imported 4 linak motor to drive.
The bed plate is made of cold rolled steel and the back plate is X-ray transparent.
With battery backup for emergency power failure. External power supply can be used.
Head and foot board:
Removable ABS injection moulded head and foot boards
Can be used as CPR board
Guardrails:
Four separate ABS guardrails with folding structure.
The height of the guardrails is 42cm above the bed surface.
Integrated LCD touch control panel for recording patient information, optional weighing function, bed departure alarm.
Controls:
The control panel outside the rail allows the nurse to adjust the position of the bed.
The control panel inside the guardrail allows the patient to control and position the backrest, feet and height sections.
Nurse controller at the end of the bed allows medical staff to work efficiently and control the bed from different positions.
Equipped with a hand-held controller for comfortable application.
Positioning:
Adjusts Hi-LO, back, knee, Trendelenburg position and reverse Trendelenburg position.
Cardiac chair position relieves pressure on lungs and heart
CPR allows the bedpan to be quickly restored to a horizontal position in an emergency.
Safety:
CPR at the end of the bed is equipped with a damping device to return the bed to a horizontal position even in the event of a power failure.
A safety position indicator makes it easy for healthcare professionals to check the patient’s safety at night.
Mobility:
125mm silent casters, with brakes.
| Specification | |
| Model | BAE503 Plus |
| Measure | |
| Length: | 2175mm±10mm |
| Width： | 990mm |
| Bed Base Height Range | |
| Maximum Height | 800mm |
| Minimum Height | 420mm |
| Technical Features | |
| Backrest max upward angle | 0-75°±10° |
| Footrest max upward angle: | 0-45°±10° |
| Trebdelenburg | 0°~≥16° |
| Anti-Trebdelenburg | 0°~≥16° |
| One button heart chair position | 0-90° |
| Loading Capacity | |
| Loading Capacity | 250kg |
| Power supply | 220VAC or 110VAC Frequency: 50-60HZ Power Plug：EU type standard if other type, confirm each order |
| Optional | Matress |
| IV POLE | |
| The Weighing Function | |
| Extension bedplate | |
| Over Bed table | |
| beside locker | |
