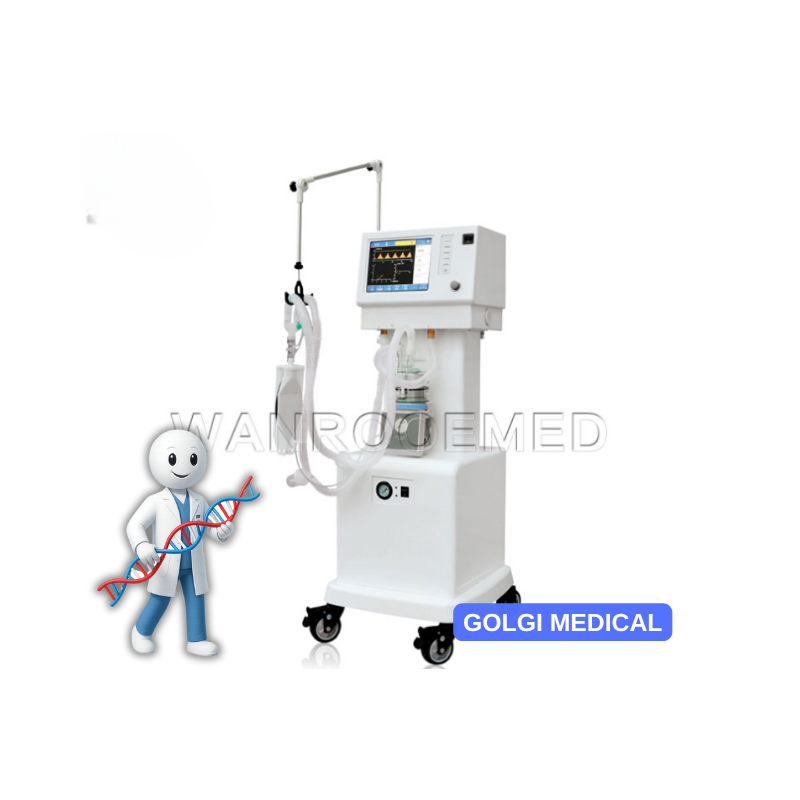

AV-2000B3 Medical Electric Portable Coronavirus Patient ICU Ventilator With Air Compressor

AV-2000B3 Patient ICU Ventilator Introduction:
AV-2000B3 ICU Ventilator is a multi-functional Ventilator adopting pneumatic, electronic control and microcomputer technology. Exported components are utilized to guarantee operational stability and reliability. With color screen (TEF) to display various measuring and configuration parameters, the device is very suitable for respiratory treatment, applicable for medical, surgical and gynecological departments, the department of pediatrics, first aid, and ICU departments of hospitals at different levels.
Ventilation parameters:
Tidal volume: 20～2000 ml
Rate : 1～120 bpm
SIMV rate : 2～20 bpm
I:E : 4:1～1:8
Pressure trigger sensitivity: -1.0-2.0kPa
Flow trigger sensitivity:  1-20L/min
PEEP : 0～2.0Kpa
Pressure range: 3～60cmH2O
Pressure support : 3～60cmH2O
SIGH: 1.5 times the inspiratory time(60-120 adjustable)
Inspiratory platform: 0～50%
Oxygen concentration: 21～100%
Pressure limitation : 5～60cmH2O
Pressure slope: 1～10gear
Flow rate setting: 1～10gear
Expiratory trigger pressure: -1.0～2.0Kpa
Time control: 1～10s
Parameters for ventilation monitoring:
tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure – time waveform, flow rate – time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance, flow -volume loop, pressure-volume loop)
