AOTA301 4-Point Head Frame For Brain Surgery

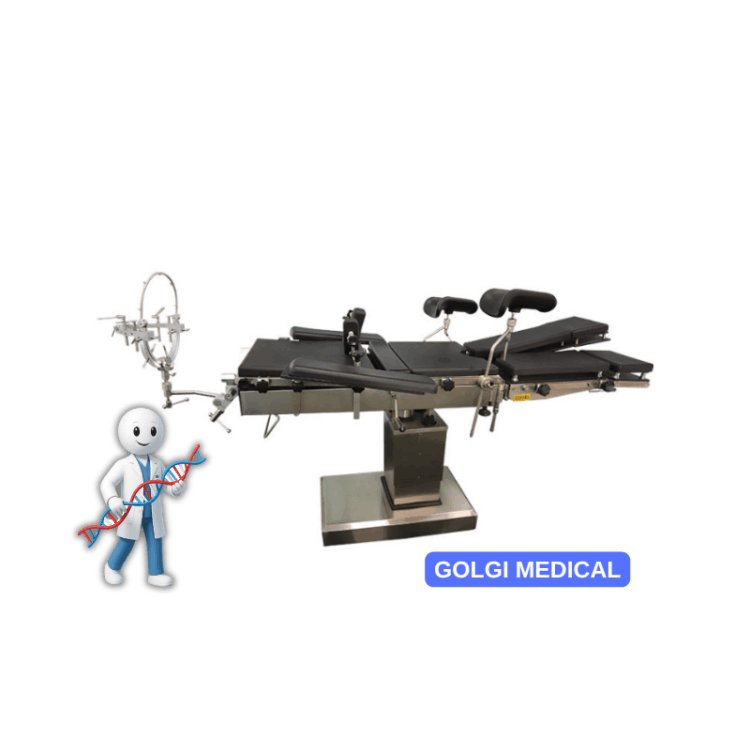

This head rack is a special device, matched with cerebral surgery. It can be adjusted forward and backward, left and right swing, raised and lowered according to operation requirement, which is easy to get best head position and body position.
Description
AOTA301 4-Point Head Frame For Brain Surgery
4-Point Head Frame For Brain Surgery Features：
1. Head frame is a special equipment matching with craniocerebral surgery.

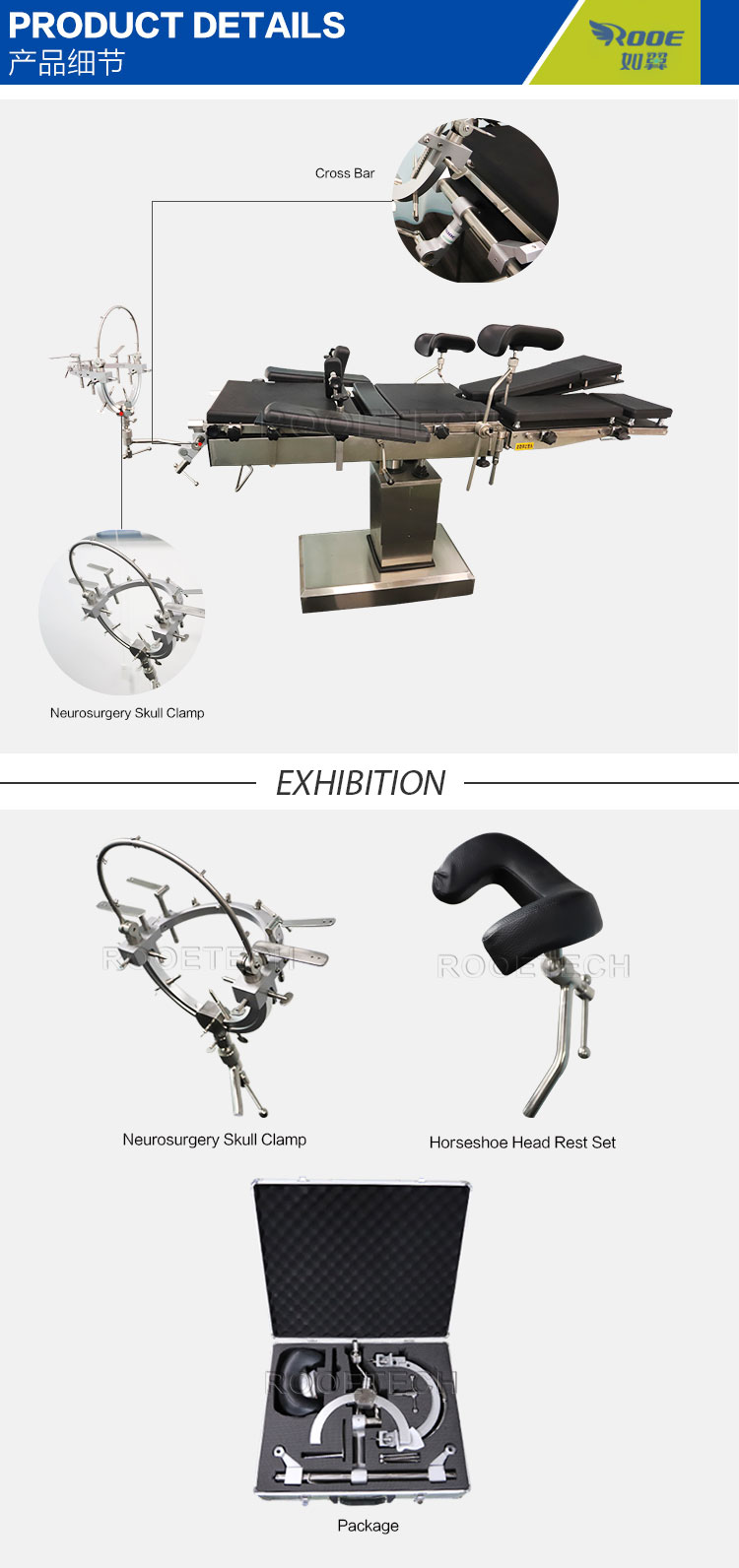

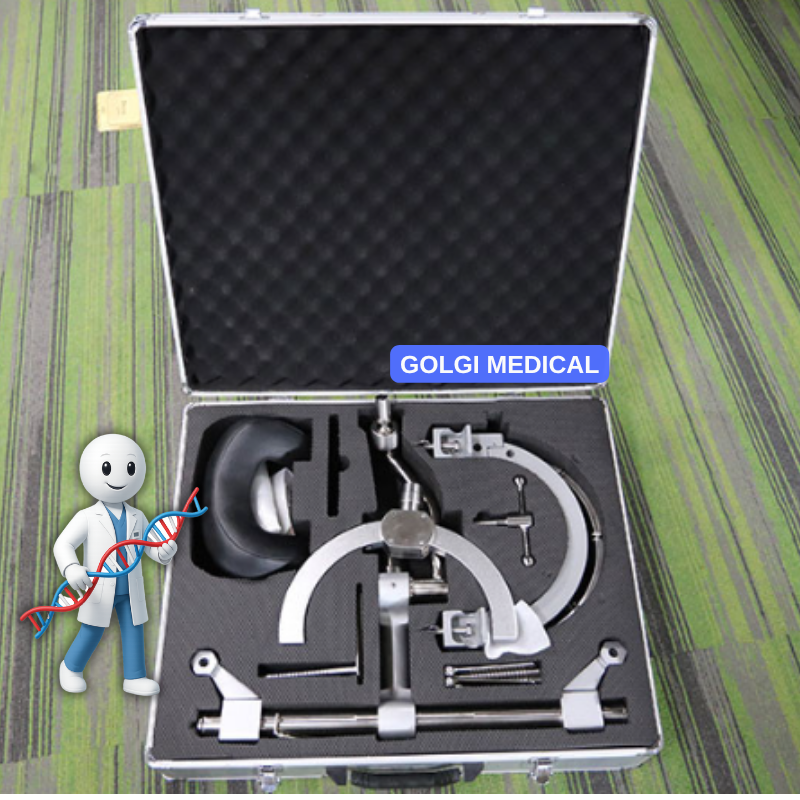

2. The whole apparatus is composed of three parts: the base body, the head fixed frame and the head support.
3. The cranial fixation frame can be adjusted according to the operation needs. It is suitable for sitting posture, supine, prone, side lying;
4. The whole set of instruments makes the range of operation relatively larger and can reduce the physician’s physical strength from the face.
5. The whole set of instruments is made of aluminum alloy material.
Parameter
| Main Parameters | |
| Model | AOTA301 |
| forward and backward movement: | 350mm |
| left and right movement: | 400mm |
| height adjustable range: | 350mm |
| swinging angle: | ≥ 75° |
| adjustment range for Installation of center distance: | 190～590mm |
