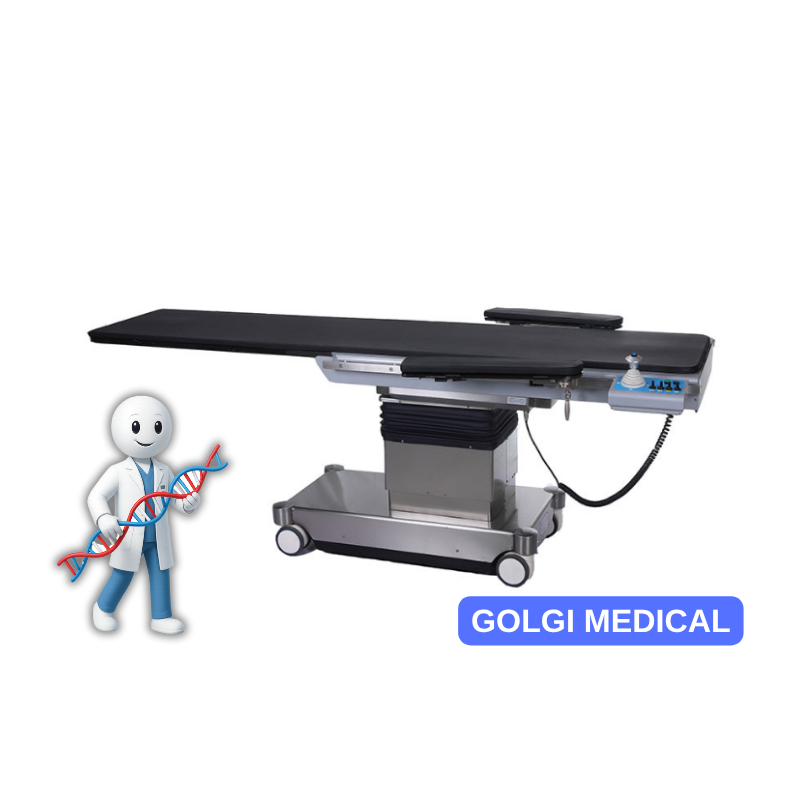

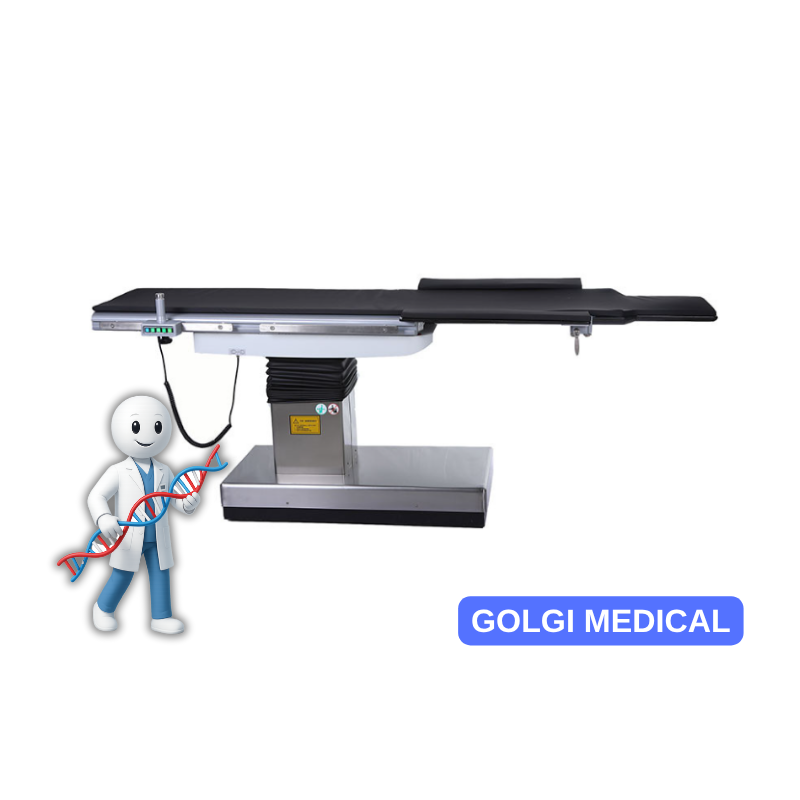

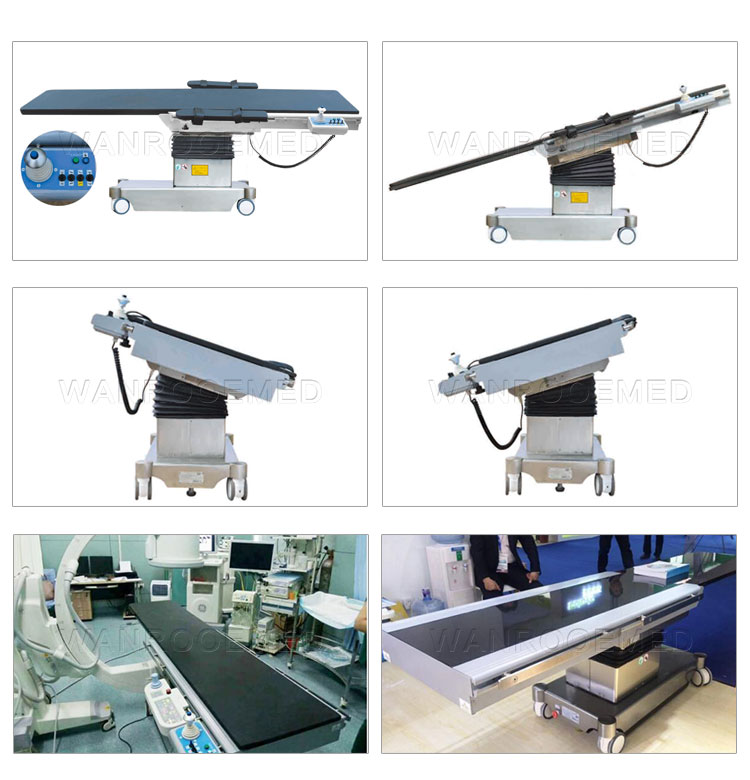

AOT901 Vascular Surgical Imaging Table OR Table
The electric image comprehensive surgery bed is mainly a bed that can shift from front to back, side to side, and is sufficient for any body part. The bed is made of carbon fiber, and there is no metal to shield it from passing through the large C-arm. X-rays are very good without having to move the patient.
Description
AOT901 Vascular Surgical Imaging Table OR Table
Vascular Surgical Imaging Table OR Table Description๏ผ
The surgical imaging table adopts advanced electro-hydraulic transmission technology and full carbon fiber table.ย ย ย Ieadl for cardiovascular, peripheral vascular angiography and DSA imaging with a variety of removable C-arms.ย The OR tables are suitable for operating room, pain management clinic and surgical suite, providing practicality and convenience.
Vascular Surgical Imaging Table OR Table Features๏ผ
General features:
1. The table is made of carbon fiber material with low X-ray absorption rate to reduce radiation damage caused by X-ray to patients and medical staff. The process can meet the requirements of imaging or imaging interventional surgery.
2. The memory sponge mattress can be coordinated according to the patient’s body temperature and can be removed.
3. Equipped with electric brake, easy to transport, transfer, cleaning.
4. Adopt 24V DC voltage, safe and reliable.
Technical features:
1. Applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.
2. Carbon fiber desktop, with up and down, vertical and horizontal movement, table tilt, trendelenburg and other functions are electrically controlled. Due to the low X-ray absorption, it can be combined with the C arm to obtain a true and clear imaging effect.
3. The design of the table base makes the top of the table can be shifted 1880mm, and the toe can be shifted 1000mm, which can open the bed to the maximum, barrier-free, no blind area of vision. Meet various surgical needs. Performing full-body X-ray scans without moving patients is also considered an advantage. Meet the requirements of 3D image acquisition.
4. Carbon fiber desktop with large radiation area. Use with any moving C arm. Used for Urological, ERCP, Gynecological and Cardiac applications.
5. It meets the head, neck,chest, perineum and limbs surgery and Gynecology laparoscopic surgery requirements.
