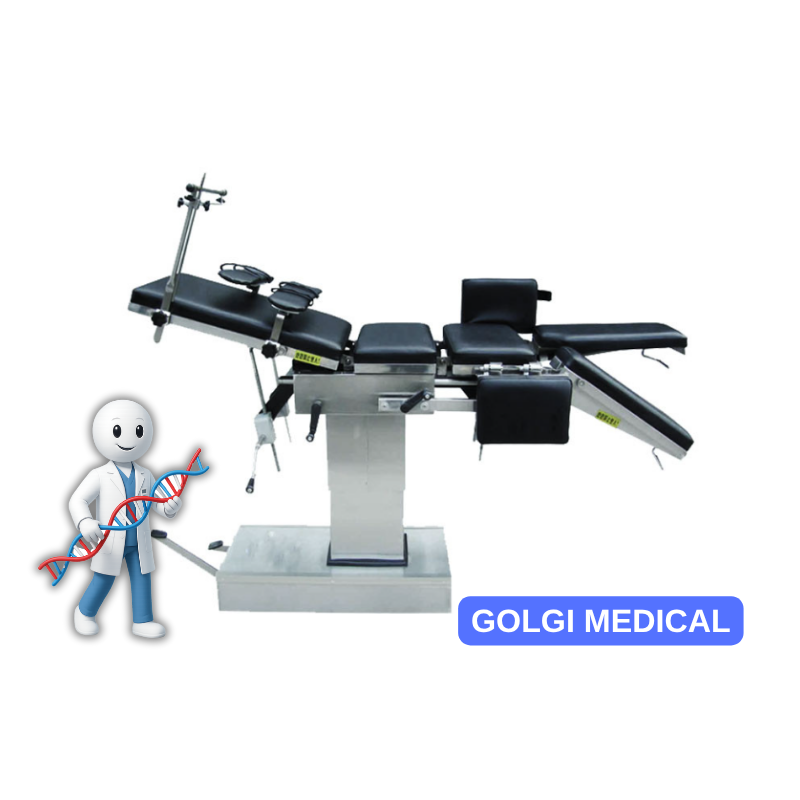

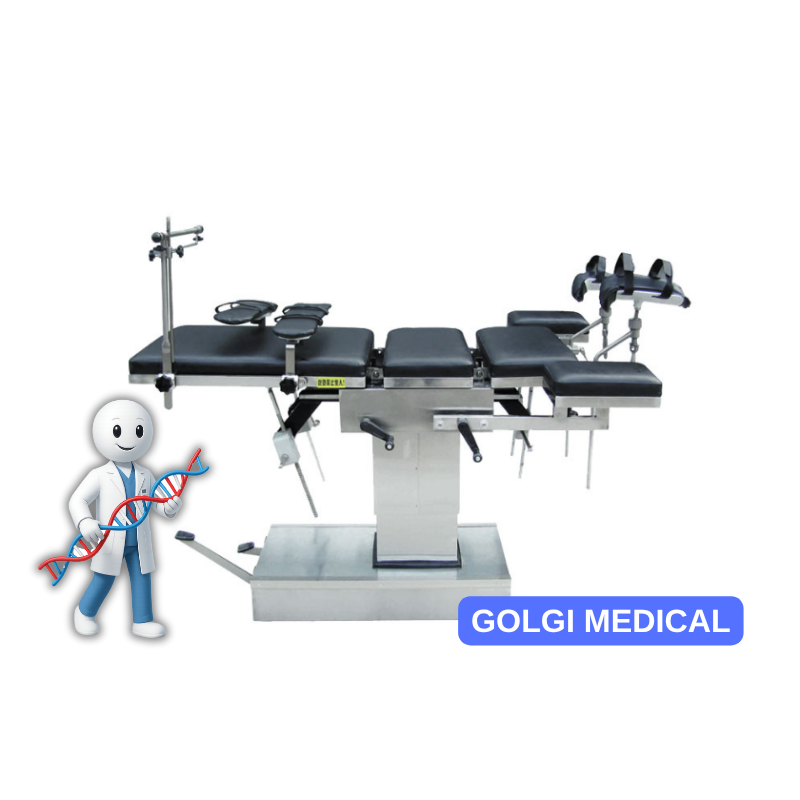

AOT3001CA Manual Operating Room Table Operating Table For Urology
AOT3001CA is a manual hydraulic operating table, suitable for surgical procedures of thoracic and abdominal cavity, perineum, pelvic and other operations, especially for anorectal and gynecological surgery. It can be raised or lowered hydraulically by means of an oil pump.The positions required in surgical operation can be controlled from the side. It is equipped with wheels with brake on the base by foot pedal conveniently for moving and lock.
Description
AOT3001CA Manual Operating Room Table Operating Table For Urology
Manual Operating Room Table Operating Table For Urology Features๏ผGeneral features:
1. The outer cover and box cover are made of SUS304 stainless steel drawing plate.
2. The mattress is made of high-density sponge, covered with artificial leather, resistant to high temperature and easy to clean.
3. The base of the worktable has rollers, which can move flexibly and fix reliably.
4. Once the foot brake is locked, the position of the operating bed will not change, the bed plate will not shake or shift, to ensure the stability and safety of the bed plate in the process of operation.
Technical Features:
1. Main body position adjustment, such as operation table lifting,Tendelenburg and anti-Tendelenburg, left-right tilt, back leg lifting and so on, can be achieved by manual operation.
2. Reliable hydraulic system can achieve stable and fast lifting, side adjustment can control the required position.
3. The back segment, tilt, leg, Tendelenburg and anti-Tendelenburg functions are manually adjusted by the crank.
4. Manual overcontrol to ensure that the function will not be interrupted in case of power supply or control system failure.
5. Specially designed renal bridge is an economic choice in operating room.
6. Legs can be folded down and opened 90ยฐ, not lifted up.
1. The outer cover and box cover are made of SUS304 stainless steel drawing plate.
2. The mattress is made of high-density sponge, covered with artificial leather, resistant to high temperature and easy to clean.
3. The base of the worktable has rollers, which can move flexibly and fix reliably.
4. Once the foot brake is locked, the position of the operating bed will not change, the bed plate will not shake or shift, to ensure the stability and safety of the bed plate in the process of operation.
Technical Features:
1. Main body position adjustment, such as operation table lifting,Tendelenburg and anti-Tendelenburg, left-right tilt, back leg lifting and so on, can be achieved by manual operation.
2. Reliable hydraulic system can achieve stable and fast lifting, side adjustment can control the required position.
3. The back segment, tilt, leg, Tendelenburg and anti-Tendelenburg functions are manually adjusted by the crank.
4. Manual overcontrol to ensure that the function will not be interrupted in case of power supply or control system failure.
5. Specially designed renal bridge is an economic choice in operating room.
6. Legs can be folded down and opened 90ยฐ, not lifted up.
Parameter
| Main Parameter | |
| Model | AOT3001CA |
| Operating Table Size | |
| Length | 2100mm |
| Width | 480mm |
| Table Overall Adjustable Range | |
| Min. height of table top from floor | 800mm |
| Max. height of table top from floor | 1050mm |
| Tendelenburg | โฅ25ยบ |
| Reversed tendelenburg | โฅ35ยบ |
| Lateral tilt | โฅ22ยบ |
| Table Section Adjustment Range | |
| Head section raised from the horizontal | โฅ80ยบ |
| Head section lowered from the horizontal | โฅ90ยบ |
| Kidney bridge elevated | โฅ120mm |
| Back section raised from the horizontal | โฅ75ยบ |
| Back section lowered from the horizontal | โฅ20ยบ |
| Leg section lowered from the horizontal | โฅ90ยบ |
| Foot board can be horizontal or vertical with leg board. | |
| Basic Accessories: | Anaesthetic screen: 1 set |
| Arm support: 1 pair | |
| Body support: 1 pair | |
| leg support: 1 pair | |
| Shoulder Rest: 1pair | |
| Foot plate: 1 pair | |
| Cushion: 1 set | |
| Kidney bridge handle: 1 pc | |
